Seamless Drainage for Contemporary Bathrooms

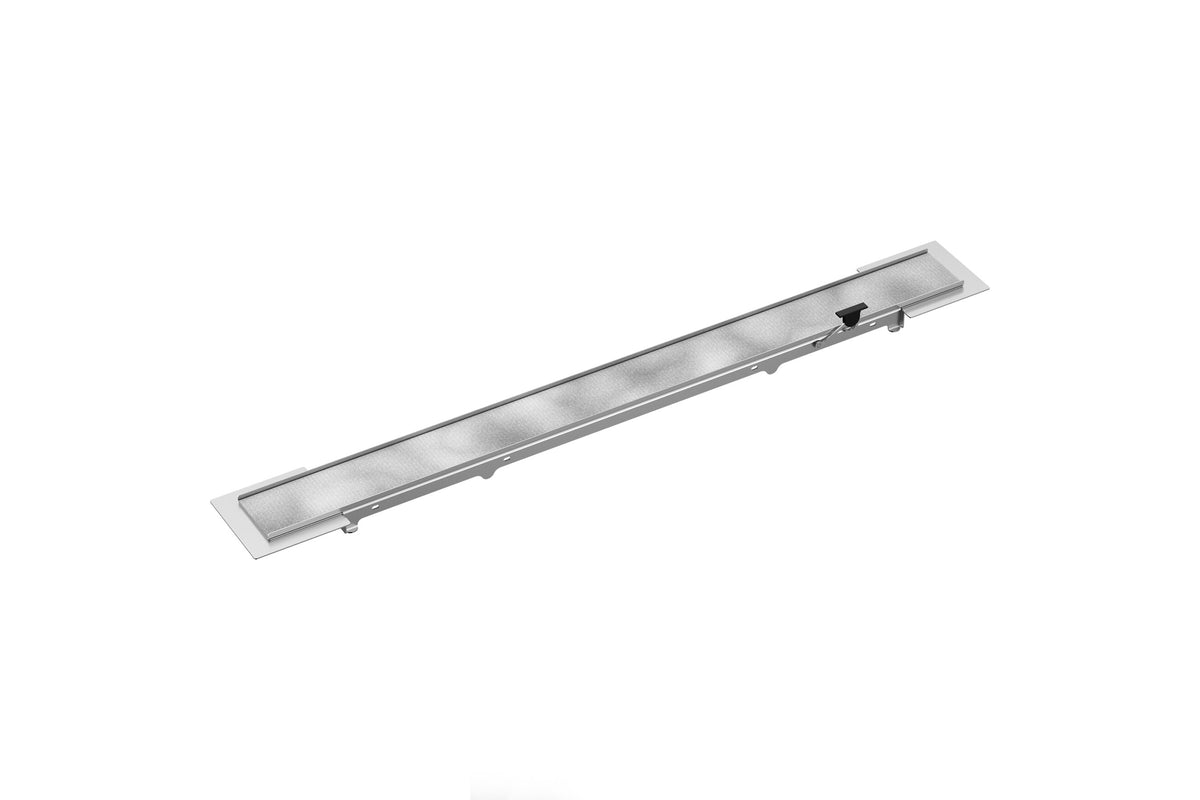

Designed to create a clean, uninterrupted shower floor, this 24" seamless linear shower drain offers a refined drainage solution for modern bathroom environments. Featuring a tileable insert and no visible frame, it blends seamlessly with surrounding finishes, allowing the drain to become virtually invisible within the shower space. Suitable for tile or natural stone flooring, it provides a sophisticated alternative to conventional shower drains while maintaining dependable performance.
Designed for Architectural Integration
Engineered for flexibility, this linear shower drain is compatible with tile or natural stone surfaces of virtually any thickness, including marble applications. The stainless steel grate includes height-adjustable risers to help achieve a precise, level installation, while the channel can be shortened by up to 2 inches on either side during fitting. An integrated trim lifter simplifies ongoing maintenance, supporting easy access for cleaning and long-term use.
Key Features & Functionality
- No visible frame for a seamless, integrated appearance
- Suitable for tile, marble, and natural stone floors of any thickness
- Stainless steel grate includes height-adjustable risers for precise leveling during installation
- Channel length can be shortened by up to 2" on both sides during installation
- Integrated trim lifter provides easy access for cleaning and maintenance
Materials & Finishes
- Durable stainless steel grate and channel construction
- Frameless linear shower drain with tileable insert
Details & Specifications
- Length: 24" (609.6 mm)
- c-UPC Certified for compliance and performance
Downloads
Brizo® Manufacturer Warranty
Your Brizo drain is backed by the manufacturer's limited warranty on parts and finishes:
- Residential: Limited lifetime coverage for the original purchaser while they own the home where the drain was first installed.
- Commercial multifamily residential: 10 years for eligible applications.
- Other commercial uses, including hotels: 5 years.
Commercial warranty periods begin upon receipt by the original purchaser or their authorized representative.
Nattura Shower will assist with warranty questions and help coordinate claims with Brizo. Brizo Kitchen & Bath Company provides the warranty and makes the final decision on coverage, subject to its terms, conditions, and exclusions.
View Brizo's full warranty terms
